Sus304 316 Customized 5000l Ro Water System Pure Water Processing

Name: Sus304 316 Customized 5000l Ro Water System Pure Water Processing
Brand: Dagyee
Price: 1 USD

Brand Name : Dagyee

Model Number : 5000LPH

Certification : CE

Place of Origin : Jiangsu.China

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100SET

Delivery Time : 10-15 work days

Packaging Details : Wooden box, standard container, Customers can specify requirements

Name : RO Water Purifier System

Material : SS304

Application : River water

Voltage/Power : 380/11.5V/Kw

Body Size : 1500*800*2000

Keywords : RO Water Filtration

Function : Producing Fresh Water

capacity : 5000L

Contact Now

Dagyee 5000l/H Desalination Customized Ro Water Industrial Ro Plant Seawater Treatment System

Water Treatment Device EDI Supplier Ro Systems Reverse Osmosis Filters Drinking Water Purification

Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane.

It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment.

Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

Sus304 316 Customized 5000l Ro Water System Pure Water Processing

Industrial Ro System Technical-5000lph

Water production	0.25m3-100m3according to customers' requirement
Model	RO-5000
Water yield	5000L/H
Voltage/Power	380/11.5V/Kw
Body Size	15008002000
Housing Material	5000/stainless steel/PE
RO membrane DN	0.00001-0.0001um
Ion removal rate	≥99%;
Endotoxin, bacterial removal rate	≥ 99%;
Recovery	≥75%;
Desalination rate	≥ 99%;
Working pressur	0.2-0.4 Mpa
Water temperature	5-40 ℃

Features Of Ro System

pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption;
RO does not need a lot of precipitants and adsorbents, and its operating cost is low;
RO separation engineering is simple in design and operation and short in construction period;
RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, food processing concentration, gas separation, etc.

Application Of RO System

Can produce pure water continuously and highly automatic
No need chemical to regeneration, easy operation
RO system uses imported USA DOW membrane
Automatic switch on when low water level, and switch off when high water level
RO membrane can wash automatically and reduce pollution
Water shortage protection for multi-stage pump
Production water conductivity meter can test the monitoring quality on line continuously.
Low operation Cost and Long life span
RO-PLC program controller
Easily control and Maintain
Auto flush/backwash

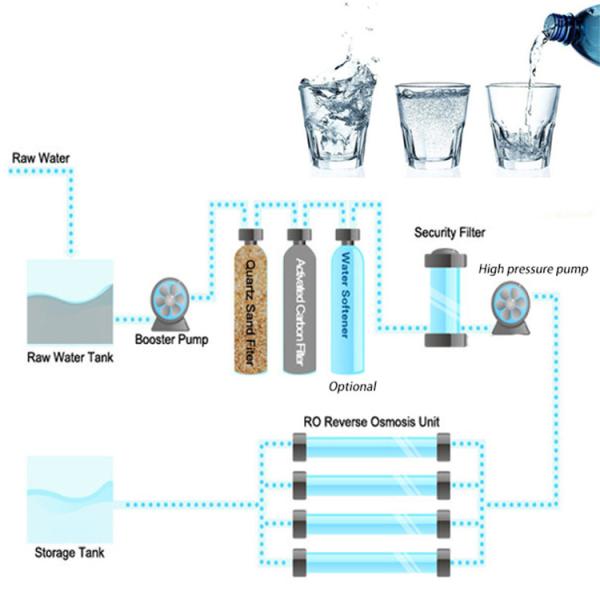

Reverse Osmosis Ro System Water Process

Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid.
Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter.
Softener(Optional)--exchange "ions" of calcium and magnesium with the most common and easiest method.
Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
High pressure pump-- Provide the high pressure to RO membrane .
RO Reverse Osmosis Unit -- main part of the plant. RO membrane's desalting rate can reach 99%.
Storage Tank,Achieve treatment effect.

Sus304 316 Customized 5000l Ro Water System Pure Water Processing
