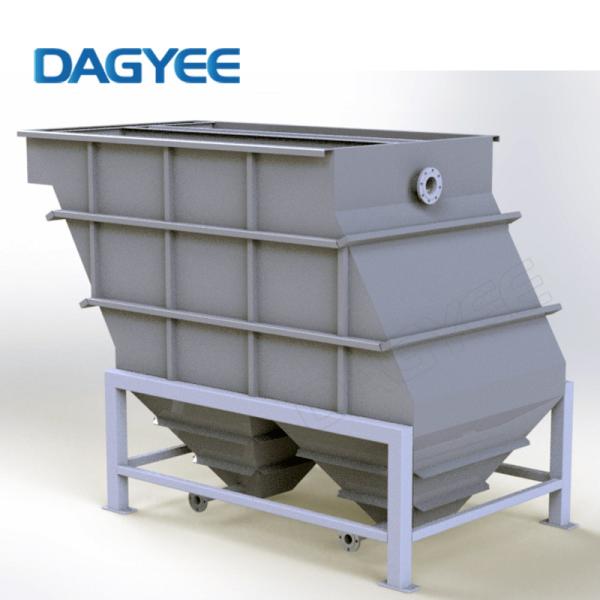

5m3/H Seaworthy Package Automatic Small Lamella Clarifier

Name: 5m3H Seaworthy Package Automatic Small Lamella Clarifier
Brand: Dagyee
Price: 1 USD

Brand Name : Dagyee

Model Number : DCL-005

Certification : CE

Place of Origin : Jiangsu.China

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30SET

Delivery Time : 15-30 work days

Packaging Details : Wooden box, standard container, Customers can specify requirements

Material : Standard container

Weight : 1500

Size : 2.55*1.6*2.9

Power : 0.55

Usage : Automatic Operation

Padding : PP/PVC/FRP

Type : Lamella sheet

Color : Customerized

Contact Now

DCL-005 Flocculator Coagulator Standard seaworthy package Automatic Lamella Clarifier

Gravity Settler is a pre-assembled, modular, high rate inclined plate settler that uses a counter-current flow principle for effective solids removal. The inclined plate concept provides an effective settling area that is equal to the field of each plate as projected onto a horizontal surface. Using the standard 2″ plate spacing and 55°-60°, up to 10 ft² of projected area become available for each square foot of land area.

5M3/hr Lamella Clarifier Specifications

Parameter	Units	DCL-005
Flow Rate	m3/h	0-5
Effective Settling Area	m2	5
Efficiency	%	80-90
Treated water turbidity	NTU	50-100
Dimensions (Clarifier Only)	L x W x H (m)	2.551.62.9
Inlet	Inch	3
Effluent	Inch	3
Sludge outlet	Inch	2
Backwash	Inch	2
Power	Kw	0.55
Weight	Kg	1500
Voltage	Standard	380V/3Phase/50Hz Or Provide your standard when making an inquiry
STANDARD INCLUSIONS + OPTIONS
Lamella Body Epoxy Coated Carbon Steel		✓
Feed Pump		o
Floculator Tanks		o
Flash & Floc Mixers		o
Sludge Scraper		o
Lamella / Floc Tank Support Galvanised Mild Steel Construction		✓
Standard Controller		✓
Lamella Body – 304ss		o
Lamella Body – 316ss		o
Variable Speed Mixer		o
Access Platform and Ladder		o
Sludge Hopper Actuated Valve		o
Sludge pump		o

Advantages Of Using Lamella Clarifier

Water following physical-chemical treatment.
Tailings in mining and metallurgical beneficiation.
Solutions from gold leaching processes.
Wet scrubbing effluents.
Effluent treatment in pulp and paper mills.
Filter backwash.

Main Process Characteristics

Stainless steel AISI 304 or Special Polypropylene
With Big Bag Filter
With Filter Press

Application Of Lamella Clarifier

Potable water clarification
Industrial process water
Oil gas industry waste water treamtment
Sand filter backwash water treatment
Metal finishing waste water treatment
Mining Industry
Groundwater Treatment
River dredging treatment Plant
Other waste water treatment plant
