DAF-120 Filter Dissolved Air Flotation Water Processor Nikuni Pump System Liquid Separation

Name: DAF120 Filter Dissolved Air Flotation Water Processor Nikuni Pump System Liquid Separation
Brand: Dagyee
Price: 1 USD

Cheap DAF-120 Filter Dissolved Air Flotation Water Processor Nikuni Pump System Liquid Separation for sale

Brand Name : Dagyee

Model Number : DAF-120

Certification : ISO9001

Place of Origin : Jiangsu.China

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20SET

Delivery Time : 15-30 work days

Packaging Details : Wooden box, standard container, Customers can specify requirements

Flow Rate : 120m3/hr

Material : Stainless Steel 304

DAF Flow Rate : 120 m3/hr

Power Consumption : 17.6 KW

After-sales service provided : Online support

Function : Producing Fresh Wate

Warranty : 1 Year

Contact Now

Dagyee DAF-120 Edi Solid Liquid Separation Dissolved Air Flotation Recycle System Treatment Machinery

Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.
Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Benenv dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.

120m3/hr Dissolved Air Flotation Specification

Parameter	Units	DAF 120
DAF Flow Rate	m3/hr	120
Total Inlet Solids	mg/L	500-6500
FOG Removal	%	80~97 (Application Dependent)
TSS Removal	%	60~99 (Application Dependent)
COD Removal	%	20~80 (Application Dependent)
BOD Removal	%	20~80 (Application Dependent)
Power Consumption	kW	17.6
Footprint	m	12.5*4.4
Inlet	in	12
outlet	in	10
Sludge outlet	in	6
Vent	in	4
STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply
Skimmer Mounted Plant		✓
Feed Pump		✓
Micro bubble generator		✓
Recycle clean water system		✓
Maintenance platform, ladder		✓
Pre-Treatment		o
Control System		✓
Control System with PLC		o
Air Compressor		✓
Treated Water Recycling for Saturator		o
Coagulation, flocculation reaction device		o
Chemical powder dissolving dosing device		o

Main Process Characteristics

Flow rate of one set: 1-200 m³/h.
Recycling flow dissolved air flotation.
High efficiency pressurization system providing high quantity dissolved-air water to create micro bubbles.
Custom design on different dissolved air flotation equipment and recycle flow ratio according to the type ofwastewater treatment requirement to achieve target removal effect and stability.
Adjustable PP chain type skimmer to suit the different quantity of sludge.
Integrated coagulation flocculation tank and cleaning water tank(as optional)is available to save the space and cost.
Automatic and remote controllable.
Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L.

Application Of Dissolved Air Flotation

Meat, poultry, and fish processing
Dairy industry
Petrochemicals
Pulp and paper
Food and beverage

DAF-120 Filter Dissolved Air Flotation Water Processor Nikuni Pump System Liquid Separation

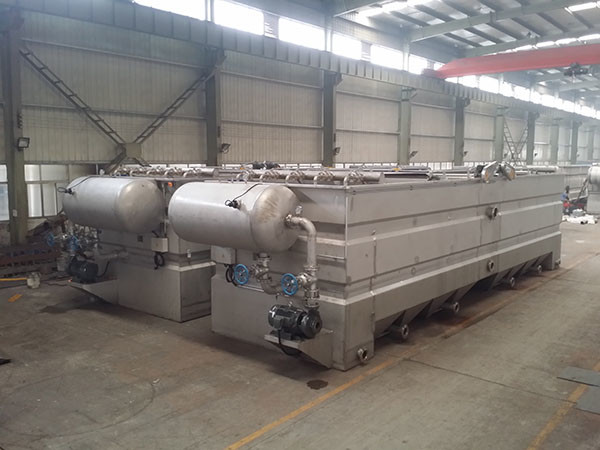

DAF-120 Filter Dissolved Air Flotation Water Processor Nikuni Pump System Liquid Separation Images
