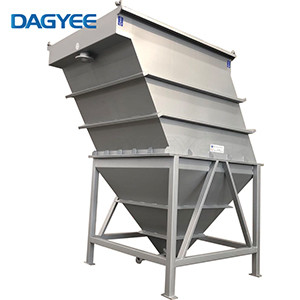

High Rate Flash Mixed Polymer Flocculant Lamella Clarifier

Name: High Rate Flash Mixed Polymer Flocculant Lamella Clarifier
Brand: Dagyee
Price: 1 USD

Brand Name : Dagyee

Model Number : DCL-020

Certification : ISO9001

Place of Origin : Jiangsu.China

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30SET

Delivery Time : 15-30 work days

Packaging Details : Wooden box, standard container, Customers can specify requirements

Material : Standard container

Product name : Lamella Clarifier

Weight : 2300

Size : 3.35*2.22*3

Power : 0.55

Application : wastewater treatment

Feature : shallow theory designed

Function : reduced footprint

Contact Now

DCL-020 High Rate Flash Mixed Polymer Flocculant Lamella Clarifier Water Treatment

What Is Lamella Clarifier

Total Suspended Solids (TSS) will naturally settle over time due to gravity, but this process can be sped up and improved by having an Inclined Plate. Water flows up the plate at a 60° angle. Gravity will force the solids to settle onto the plate. The particles collect on the plates will become heavier and slide back down the plate to the clarifier cone. This process creates a counter flowing pattern, where the solids are seperated from the liquid into two lanes of traffic. The water flows in the upward bound lane, and the sludge flows in downward lane. This method reduces drag and friction creating a faster settling process than if the solids were to settle naturally.

Flocculants and Coagulants are added to improve the settling time. Coagulants neutralize the negative charge particles allowing them to sink faster. Flocculants allow for the small particles to collect and accumulate. This will make the solids heavier and easier to settle.

Lamella Clarifier Equipment Specifications

Parameter	Units	DCL-020
Flow Rate	m3/h	0-20
Effective Settling Area	m2	20
Efficiency	%	80-90
Treated water turbidity	NTU	50-100
Dimensions (Clarifier Only)	L x W x H (m)	3.352.223
Inlet	Inch	4
Effluent	Inch	4
Sludge outlet	Inch	2
Backwash	Inch	2
Power	Kw	0.55
Weight	Kg	2300
Voltage	Standard	380V/3Phase/50Hz Or Provide your standard when making an inquiry
STANDARD INCLUSIONS + OPTIONS
Lamella Body Epoxy Coated Carbon Steel		✓
Feed Pump		o
Floculator Tanks		o
Flash & Floc Mixers		o
Sludge Scraper		o
Lamella / Floc Tank Support Galvanised Mild Steel Construction		✓
Standard Controller		✓
Lamella Body – 304ss		o
Lamella Body – 316ss		o
Variable Speed Mixer		o
Access Platform and Ladder		o
Sludge Hopper Actuated Valve		o
Sludge pump		o

Range Of Applications

Recycling and clarifying process water
Separating mud from water
Saving almost totally water consumption

Advantages Of Lamella Clarifier

Continuous operation.
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.

Available Designs Of Lamella Clarifier

Inclined plates spacing of 80-100 mm
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
allow for self-cleaning, pitches require backwash
Typical loading rates are 5 to 15m/h.
Set up scraper for easy drainage
