5m3/H Lamella Clarifier

Name: 5m3H Lamella Clarifier
Brand: Dagyee
Price: 1 USD

Brand Name : Dagyee

Place of Origin : Jiangsu.China

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model Number : DCL-020

Price : Negotiable

Supply Ability : 30SET

Delivery Time : 15-30 work days

Packaging Details : Wooden box, standard container, Customers can specify requirements

Certification : ISO9001

Material : carbon steel or stainless steel

Weight : 2300

Size : 3.35*2.22*3

Power : 0.55

Product name : Lamella Clarifier

Application : Textile wastewater

Type : Automatic

Function : reduced footprint

Contact Now

DCL-020 Loading Rates Are 5 To 15m3/H Separation Of Precipitation Lamella Clarifier

What Is Lamella Clarifier

Dagyee loading rates are 5 to 15m3/h separation of precipitation lamella clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen.

Lamella Clarifier Equipment Specifications

Parameter	Units	DCL-020
Flow Rate	m3/h	0-20
Effective Settling Area	m2	20
Efficiency	%	80-90
Treated water turbidity	NTU	50-100
Dimensions (Clarifier Only)	L x W x H (m)	3.352.223
Inlet	Inch	4
Effluent	Inch	4
Sludge outlet	Inch	2
Backwash	Inch	2
Power	Kw	0.55
Weight	Kg	2300
Voltage	Standard	380V/3Phase/50Hz Or Provide your standard when making an inquiry
STANDARD INCLUSIONS + OPTIONS
Lamella Body Epoxy Coated Carbon Steel		✓
Feed Pump		o
Floculator Tanks		o
Flash & Floc Mixers		o
Sludge Scraper		o
Lamella / Floc Tank Support Galvanised Mild Steel Construction		✓
Standard Controller		✓
Lamella Body – 304ss		o
Lamella Body – 316ss		o
Variable Speed Mixer		o
Access Platform and Ladder		o
Sludge Hopper Actuated Valve		o
Sludge pump		o

Range Of Applications

Mining
Metal finishing
Treat groundwater
Industrial process water
Backwash from sand filters
Pre-treatment ahead of membrane filters
Municipal wastewater
TSS-solids particulate removal
Dissolved solids and metals precipitation
Leachate clarification
Cooling tower water clarification
Surface/raw water treatment
Water recycling/reuse

Advantages Of Lamella Clarifier

Smaller footprint
large effective settling area
Improved overflow rates 2 to 4 times
Can be used for a long time
Normal use without clogging, Even clogging is provided with backwash device
Less possibility for injury

Available Designs Of Lamella Clarifier

Inclined plates spacing of 80-100 mm
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
allow for self-cleaning, pitches require backwash
Typical loading rates are 5 to 15m/h.
Set up scraper for easy drainage

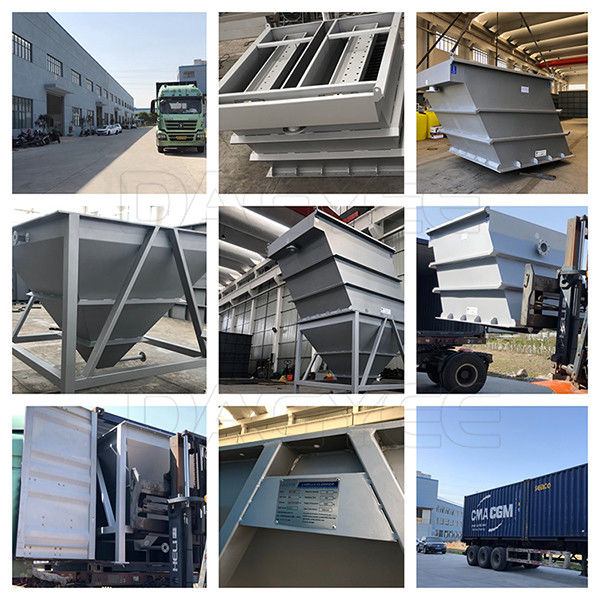

Dagyee Lamella Clarifier Focus On More Details
