DCL-070 Ore Mining And Processing Sedimentation Lamella Separator WWTP Wastewater Treatment System
What Is Lamella Clarifier
The clarifier consists of a series of inclined plates, which are arranged to form a separate sedimentation chamber between adjacent plates.
The raw water is first fed to Static Mixer. Chemicals like alum, poly electrolyte are added prior to static Mixer for proper mixing of chemicals in water.
Water from Static mixer enters in Flocculator in which paddle type agitator is provided for gentle mixing. Polymer is added for flocculation of coagulated particles.
70M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-070 |
| Flow Rate | m3/h | 0-70 |
| Effective Settling Area | m2 | 70 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 6.4*2.6*3 |
| Inlet | Inch | 10 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 6500 |
| Voltage | Standard | 380V/3Phase/50Hz
Or
Provide your standard
when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS |
| Lamella Body Epoxy Coated Carbon Steel | ✓ |
| Feed Pump | o |
| Floculator Tanks | o |
| Flash & Floc Mixers | o |
| Sludge Scraper | o |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ |
| Standard Controller | ✓ |
| Lamella Body – 304ss | o |
| Lamella Body – 316ss | o |
| Variable Speed Mixer | o |
| Access Platform and Ladder | o |
| Sludge Hopper Actuated Valve | o |
| Sludge pump | o |
Range Of Applications
- Fly Ash Waste
- Flue Gas Desulfurization (FGD) Waste
- Clarification
- Solids Recovery
- Cooling Tower Blowdown
- Iron Removal
- Municipal Water Treatment
- Semiconductor Process Waste
- Whitewater (Pulp & Paper)
- Groundwater Remediation
- Potable Water Clarification
- Landfill Leachate
- Boiler Waste Treatment
Features Of Lamella Clarifier
- simple structure,without wearing parts,
- steady operation,easy operation
- small power,save energy
- small occupy area, low investment, high efficient
- short retention time, high sediment efficiency, no sludge backflow.
HOW Does Lamella Clarifier Work
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper.
The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
Dagyee Lamella Clarifier Focus On More Details
Product Tags:
|
|

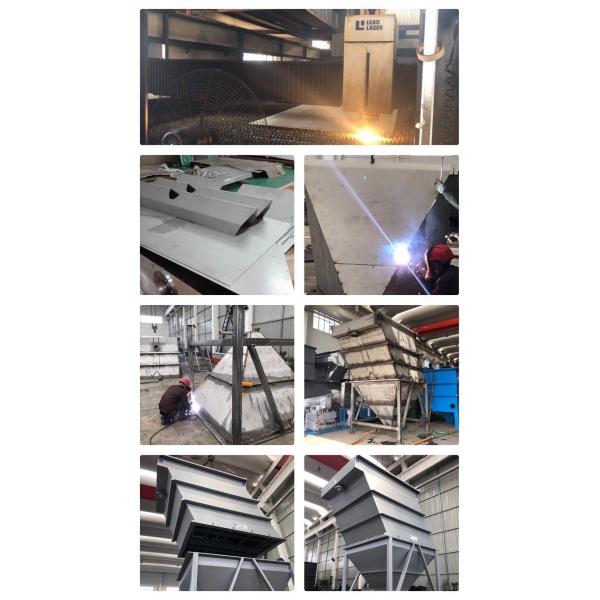

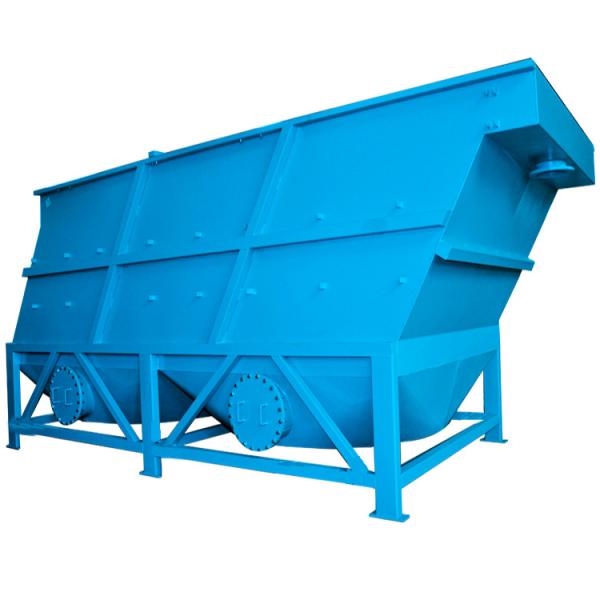

WWTP Lamella Separator Images
|
