Dagyee DT200 Sus304 Chemical Dosing System Liquid Polymer For Stamp Making
DAGYEE all in one polymer preparation system is used for the dosing of liquid powder flocculants. It can be widely used in water treatment applications in wastewater, papermaking, chemical, petrochemical and mineral processing industries.

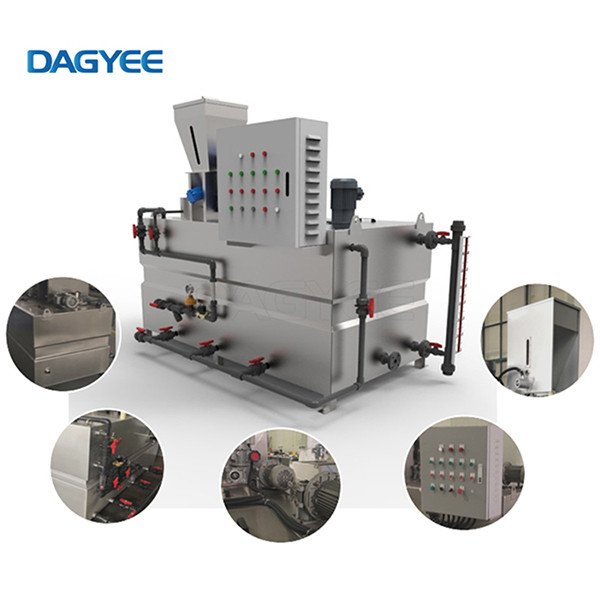

Three chamber continuous flow system with control panel, powder feeder, diaphragm metering pump, mixer and agitator are all integrated in one solution.
Dissolution chamber, maturation chamber and storage room are designed for heavy-duty water treatment environments and are made entirely of polypropylene with stainless steel dosing screws for excellent corrosion resistance.
Intuitive controls allow users to easily calibrate powder dosing units and concentrate pumps, and manage ingredient adjustments with precise speed regulators. At the same time, the conductivity level probe warns the operator of high, low, and critical low levels through emergency warning lights.
The Specification Of Dissolver Dosing Device
| Model | DT200 |
| Capacity(L/h) | 200 |
| Power(kw) | 0.54 |
| Powder dosage(kg/h) | 0.20 |
| Water inlet flow(m3/h) | 0-0.2 |
| L(mm) | 940 |
| B(mm) | 520 |
| H(mm) | 1450 |
| L1(mm) | 860 |
| B1(mm) | 470 |
| Net weight(kg) | 250 |
The Feature Of Dissolver Dosing Device
- Each chamber is equipped with secure inspection cover and emptying valve
- User guided solvent concentration entry
- Minimal product carryover
- Programmable logic PLC controller
- Control cabinet for automatic control of the entire system
- Optional automatic control panel version to add polymer in proportion
- Version with junction box available on request
Complete PAM Batching Metering Systems
- The polymer preparation unit automatically prepares polymer solutions used as coagulants, and these solutions can be used for suspended particles in water treatment processes from swimming pool maintenance to wastewater treatment, as well as oil recovery, color removal, papermaking and beneficiation.
- The Dagyee series contains 6 models and can provide polymer solutions up to 4000 l / h. This series is also equipped with various electrical control panels, mixers, optional diaphragm pumps and tank sizes to provide the best solution for every application. Its design also means that Dagyee offers a flexible and compact footprint solution to fit in tight spaces.
