Lamella Solids Separator Clarifier Mechanical Processing Wastewater

Product Categories
Wuxi Dajiang Environmental Technology Co., Ltd.
Contact Now

Lamella Solids Separator Clarifier Mechanical Processing Wastewater

Brand Name : Dagyee

Model Number : DCL-050

Certification : CE

Place of Origin : Jiangsu.China

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50SET

Delivery Time : 20-30 work days

Packaging Details : Wooden box, standard container, Customers can specify requirements

Material : SS316 Carbon steel

Weight : 4500

Size : 4.2*2.8*3M

Color : Customerized

Padding : PP/PVC/FRP

Effective Settling Area : 50 m2

Efficiency : 70-99 %

Flow Rate : 0-50 m3/h

Contact Now

What Is Lamella Clarifier

Inclined Plate Lamella Clarifiers are designed to remove solids from water. They are used in a wide variety of Wastewater Treatment Applications, including Metal Finishing Wastewater Treatment. The Total Suspended Solids TSS in the wastewater will naturally settle over time due to gravity, but this process can be sped up and improved by having Inclined Plates. The inclined plates provide a large projected settling area in a compact form. This technology is greatly beneficial compared to a cone bottom tank or a circular clarifier because of the space savings, settling efficiencies, and the reduced cost of construction.

50M3/hr Lamella Clarifier Specifications

Parameter Units DCL-050
Flow Rate m3/h 0-50
Effective Settling Area m2 50
Efficiency % 80-90
Treated water turbidity NTU 50-100
Dimensions (Clarifier Only) L x W x H (m) 4.65*2.82*3
Inlet Inch 8
Effluent Inch 8
Sludge outlet Inch 2
Backwash Inch 2
Power Kw 0.55
Weight Kg 4500
Voltage Standard 380V/3Phase/50Hz
Or
Provide your standard
when making an inquiry
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply, o = Optional Supply,
Lamella Body Epoxy Coated Carbon Steel ✓
Feed Pump o
Floculator Tanks o
Flash & Floc Mixers o
Sludge Scraper o
Lamella / Floc Tank Support Galvanised Mild Steel Construction ✓
Standard Controller ✓
Lamella Body – 304ss o
Lamella Body – 316ss o
Variable Speed Mixer o
Access Platform and Ladder o
Sludge Hopper Actuated Valve o
Sludge pump o
70M3/hr Lamella Clarifier Specifications
Parameter Units DCL-070
Flow Rate m3/h 0-70
Effective Settling Area m2 70
Efficiency % 80-90
Treated water turbidity NTU 50-100
Dimensions (Clarifier Only) L x W x H (m) 6.4*2.6*3
Inlet Inch 10
Effluent Inch 8
Sludge outlet Inch 2
Backwash Inch 2
Power Kw 0.55
Weight Kg 6500
Voltage Standard 380V/3Phase/50Hz
Or
Provide your standard
when making an inquiry
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply, o = Optional Supply,
Lamella Body Epoxy Coated Carbon Steel ✓
Feed Pump o
Floculator Tanks o
Flash & Floc Mixers o
Sludge Scraper o
Lamella / Floc Tank Support Galvanised Mild Steel Construction ✓
Standard Controller ✓
Lamella Body – 304ss o
Lamella Body – 316ss o
Variable Speed Mixer o
Access Platform and Ladder o
Sludge Hopper Actuated Valve o
Sludge pump o

Range Of Applications

  • Primary clarification of wastewater streams
  • Backwash water recovery
  • Industrial water treatment systems
  • Potable water treatment systems
  • River water abstraction clarification
  • Wash water recovery and recirculation systems
  • Wet scrubber and slaking effluent treatment

Features Of Lamella Clarifier

  • Structural steel support legs
  • Epoxy painted carbon steel tank
  • Individually removable FRP
  • plates
  • Adjustable effluent weir plates
  • Standard units can be
  • manufactured for flows from 5
  • gpm to 3000 gpm and above in
  • a single above-grade tank
  • One-piece prefabricated units
  • are available with up to 1000 sqft
  • of effective settling area
  • Single tank construction with
  • integral flash mix/flocculation
  • compartments for smaller units
  • Multiple sample connections​

Advantages

  • Smaller footprint
  • Large effective settling area
  • Improved overflow rates 2 to 4 times
  • Long time to be use
  • Normal use without clogging
  • Even clogging is provided with backwash device Less possibility for injury

Availbailable Designs

  • Inclined plate length 1–2 m
  • Plate pitches between 50° and 60°
  • Allow for self-cleaning, pitches require backwash
  • Loading rates are 5 to 15m/h
  • Set up scraper for easy drainage.

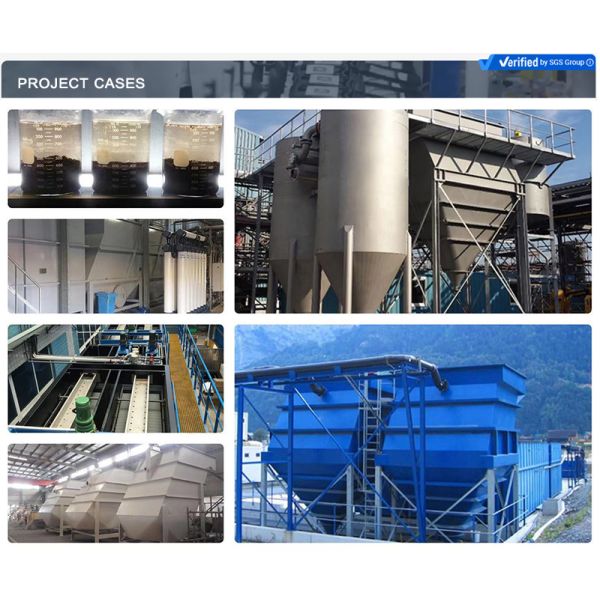

Dagyee Lamella Clarifier Focus On More Details

Lamella Solids Separator Clarifier Mechanical Processing WastewaterLamella Solids Separator Clarifier Mechanical Processing Wastewater

Lamella Solids Separator Clarifier Mechanical Processing Wastewater

Lamella Solids Separator Clarifier Mechanical Processing Wastewater
