CE Automatic Sedimentation Tank Sludge Thickener Lamella Clarifier
Lamella Plate Clarifier
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Benefits
Save space
Space requirement can be reduced by up to 80% when compared with a settlement tanks.
More reliable
Unique patented flow control system increases reliability. The use of plates with side entry rather than tubes increases capacity and prevents the sludge being disturbed.
More settling
Up to 10 m2 of settling area per square metre of ground area.
Optional configuration
Available as a free-standing unit or supplied as plate packs for installation into concrete or steel tanks. Plates can be supplied with variable spacings of 50, 60, 80 and 100 mm to suit the sludge characteristics.
Low cost
No power requirement so has minimal operating costs.
Applications
- Heavy Metals Removal
- Filter Press Belt Wash
- Battery Plant Heavy Metals Removal
- Hazardous Waste Remediation
- Brine Clarification
- Plating and Finishing Wastes
- Food & Beverage Waste
- Trace Metals Reduction
- Storm Water Management
- Bleach Plant Wash Water
- Incinerator Wet Scrubber
- Potable Water Pretreatmen
Available options
• Flash mixing/flocculation tank with agitator
•Full glass steel or stainless steel structure
•Concrete tank design
•Special coatings and plates
•Integrated mechanical sludge thickener
• Overhaul platforms and ladders
•In-house laboratory analysis to optimize equipment
• Drinking water design
• Gasket and removable cover
•Automatic desilting
•Instrumentation and control
•Chemical feed equipment
•Sludge treatment and dewatering
• Pilot size units for field testing
| 50M3/hr Lamella Clarifier Specifications |
| Parameter | Units | DCL-050 |
| Flow Rate | m3/h | 0-50 |
| Effective Settling Area | m2 | 50 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 4.65*2.82*3 |
| Inlet | Inch | 8 |
| Effluent | Inch | 8 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 4500 |
| Voltage | Standard | 380V/3Phase/50H |
STANDARD INCLUSIONS + OPTIONS
✓= Standard Supply, o = Optional Supply |
| Lamella Body Epoxy Coated Carbon Steel | ✓ |
| Feed Pump | o |
| Floculator Tanks | o |
| Flash & Floc Mixers | o |
| Sludge Scraper | o |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ |
| Standard Controller | ✓ |
| Lamella Body – 304ss | o |
| Lamella Body – 316ss | o |
| Variable Speed Mixer | o |
| Access Platform and Ladder | o |
| Sludge Hopper Actuated Valve | o |
| Sludge pump | o |
Example Removal Performance
| Application | Removals |
| Primary clarification | 50% to 70 % TSS removal (without chemicals) |
| Raw water clarification | 2 NTU |
| Washwater settlement | 5 NTU |
| settlement | 30 mg/l TSS 95%ile |
Product Tags:
|
|

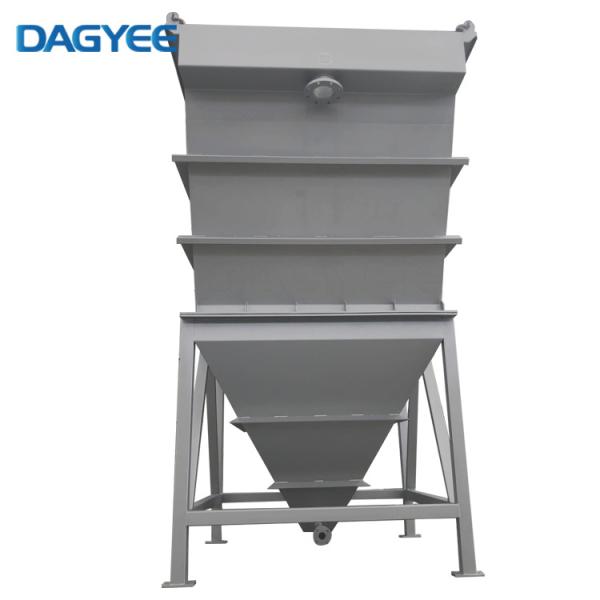

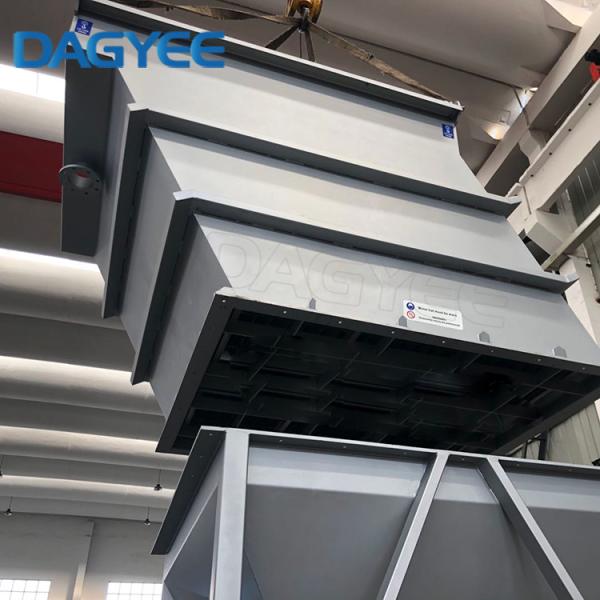

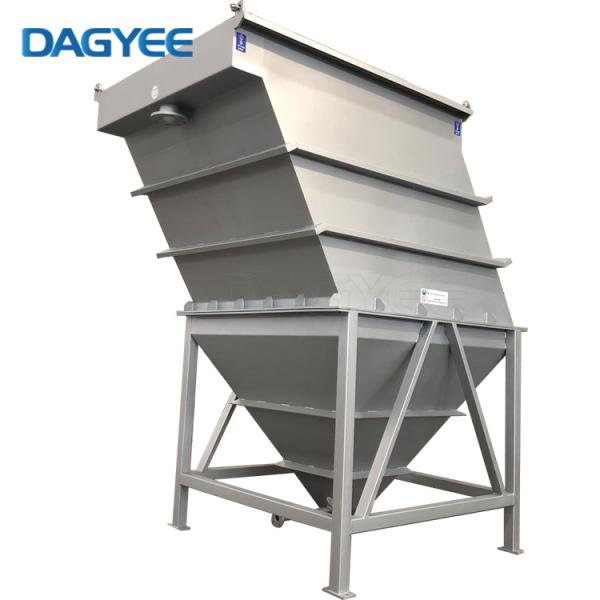

Ce Automatic Sedimentation Tank Lamella Clarifiers For Sludge Thickener Images
|
